| 天津市首達永恒離合器廠是一家專業生產電磁離合器、制動器企業，是國內起步較早的專業生產電磁制動器、離合器企業，已有二十多年研制開發電磁離合器歷史。電 話：022-26992047 022-26990706 傳 真：022-26990706 |
|
|
規格
Size |
額定傳遞力矩
Rated Transmitting Torque N·m |
額定電壓：
Rated Voltage DCV |
線圈消耗功率 (20℃)
Coil Consumption power(20℃) W |
允許最高結合轉速
Max Engagement Revolution r/min |
允許最高轉速
Allowed Max Revolution r/min |
|
5A
|
50
|
24
|
21
|
36
|
4500
|
|
5AN
|
50
|
24
|
26
|
36
|
4500
|
|
10A
|
100
|
24
|
28
|
30
|
4000
|
|
25A
|
250
|
24
|
32
|
20
|
3500
|
|

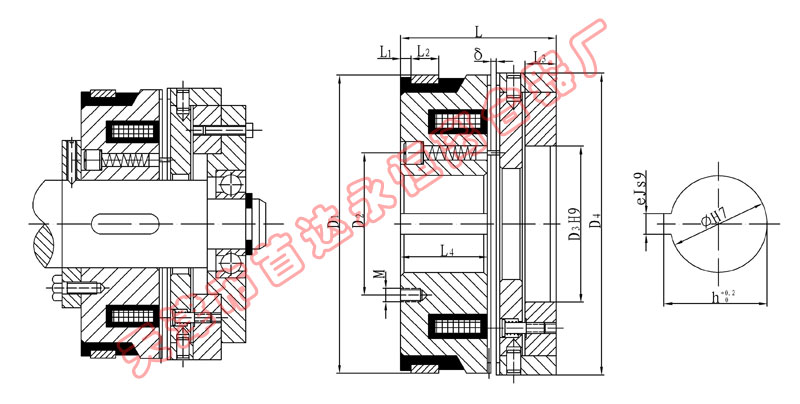

規格
Size |
徑向尺寸 Radial Demensions
|
軸向尺寸 Axial Demensions
|
電刷型號
Brush Model |
||||||||||||
|
D1 |
D2 |
D3 |
D4
|
ф |
h
|
e
|
M
|
L |
L1 |
L2 |
L3
|
L4
|
δ
|
||
|
5A
|
87
|
41
|
45
|
86
|
28
|
31.3
|
8
|
3-M4深8
|
45
|
5
|
8
|
8
|
25.2
|
0.3
|
DS-002
|
|
5AN
|
87
|
-
|
45
|
86
|
28
|
31.3
|
8
|
-
|
45
|
5
|
8
|
8
|
26
|
0.3
|
|
|
10A
|
94
|
-
|
45
|
94
|
40
|
43.3
|
12
|
-
|
50
|
5
|
8
|
8
|
30
|
0.5
|
DS-001
|
|
25A
|
125
|
70
|
75
|
125
|
40
|
43.3
|
12
|
3-M5深10
|
55.5
|
4
|
9
|
12
|
30.3
|
0.5
|
|
